Part Number Breakdown & Cross-References
-

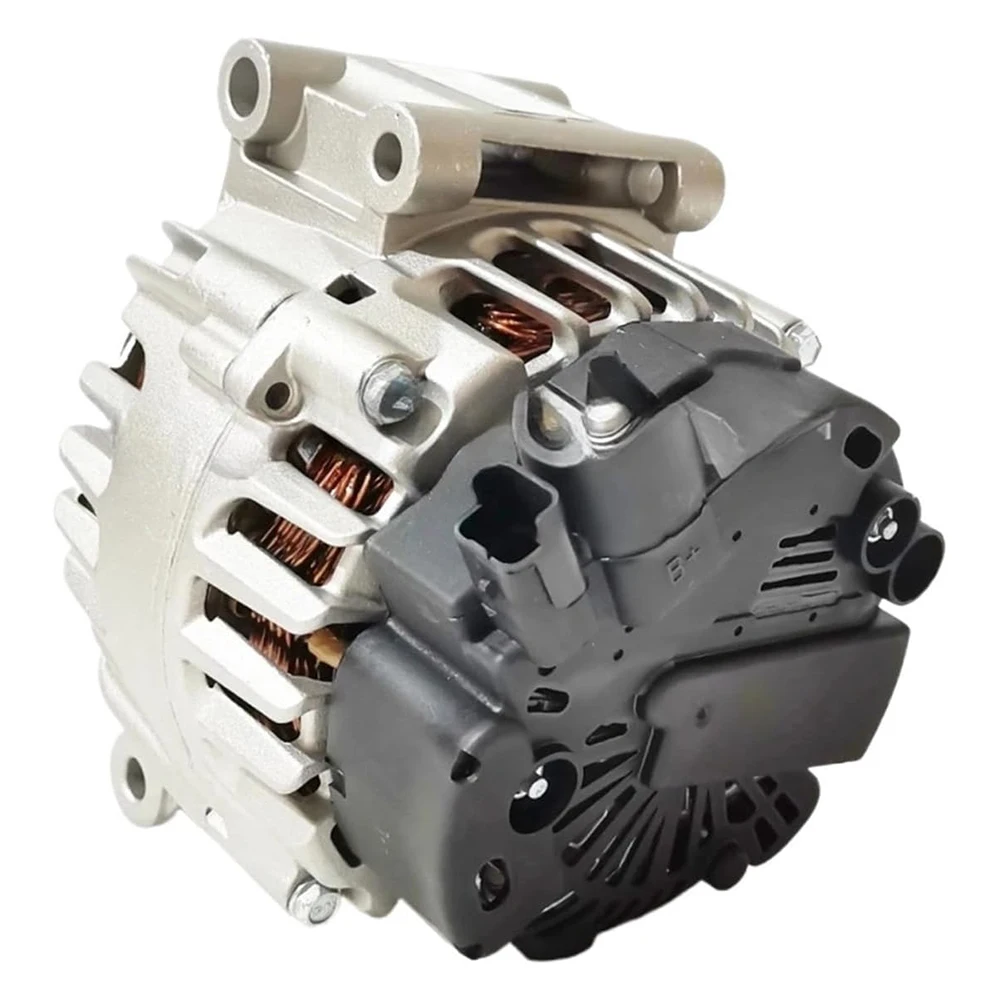

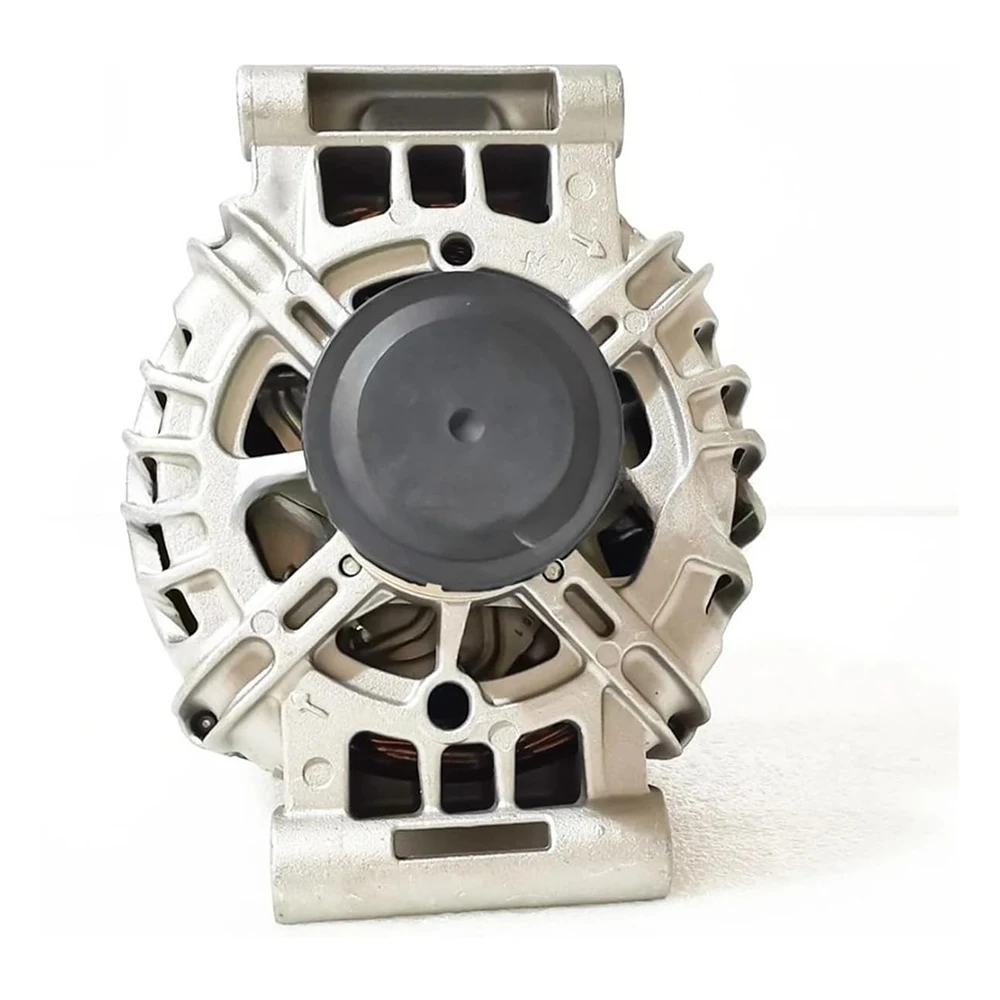

9678731280 → Genuine OEM part number from Peugeot/Citroën/DS (often listed as 96 787 312 80). This is the main reference for the complete alternator assembly. It's a Valeo-supplied unit rebadged for PSA brands.
-
FG15T152 → Valeo manufacturer part number (VAL FG15T152 or similar series like FG15T075/FG15T117/FG15T148 in related variants). This is the OE supplier code for the same alternator. Valeo FG15 series are compact, high-efficiency units popular in European PSA models.
Key Specifications (Confirmed from OEM/Supplier Data)
-
Output: 150A (some listings note 14V system; high-output for turbo models with start-stop, premium audio, etc.)
-
Voltage: 14V charging system (12V nominal)
-

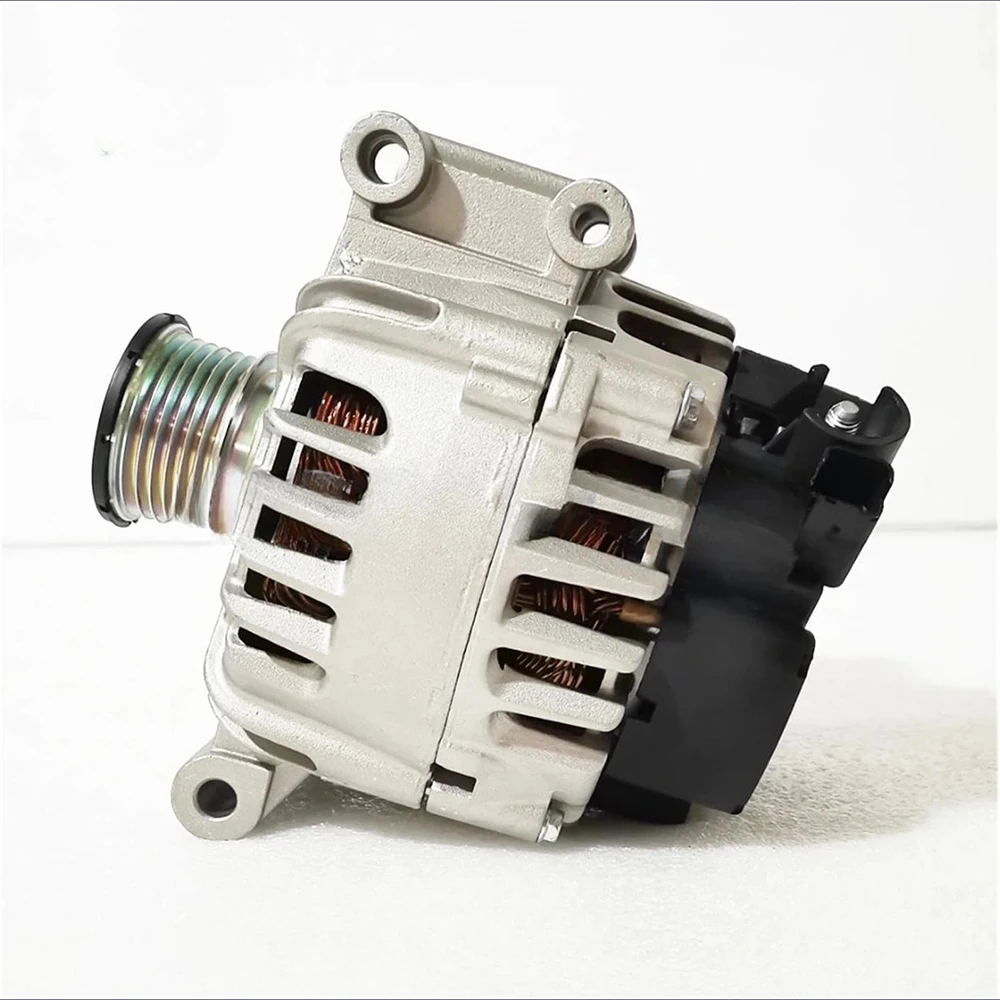

Pulley: 6-groove (6PK) with overrunning alternator pulley (OAP/freewheel clutch), diameter ≈49–50mm
-
Rotation: Clockwise
-
Regulator: Integrated, smart/LIN-compatible for PSA electronics (adaptive charging)
-
Mounting: Direct bolt-on with standard PSA fitment
-
B+ Connection: M8 stud
-
Other Common Crosses: 9822230780, 9822231380, 9831731780 (later Peugeot supersessions), LRA04125 (Lucas equivalent), AS-PL A3683S (aftermarket new), etc.
Common Compatible Vehicles
Primarily 1.6L turbo petrol (THP) models from ~2013–2020+ (market-dependent; strong presence in Asia/Europe, including Singapore imports):
-
Peugeot: 208, 308 (II), 408, 508, 2008, 3008, 5008, 308 GTI
-
Citroën: C3, C4, C4 Grand Picasso, C4 Picasso, C5, C5 Aircross (some 1.6 THP variants), C-Elysée
-
DS: DS 4, DS 5, DS 6 (China-market), DS 7 (select)
-
Other: Some export/Dongfeng variants or rebadged models with EP6 1.6T engines
This alternator supports higher electrical loads in turbo models (e.g., for i-Cockpit, LED lights, infotainment, start-stop without draining the battery).
